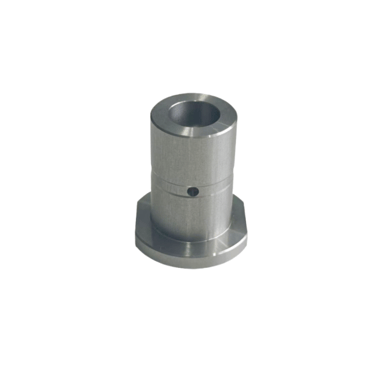

Precision Flange Sleeve

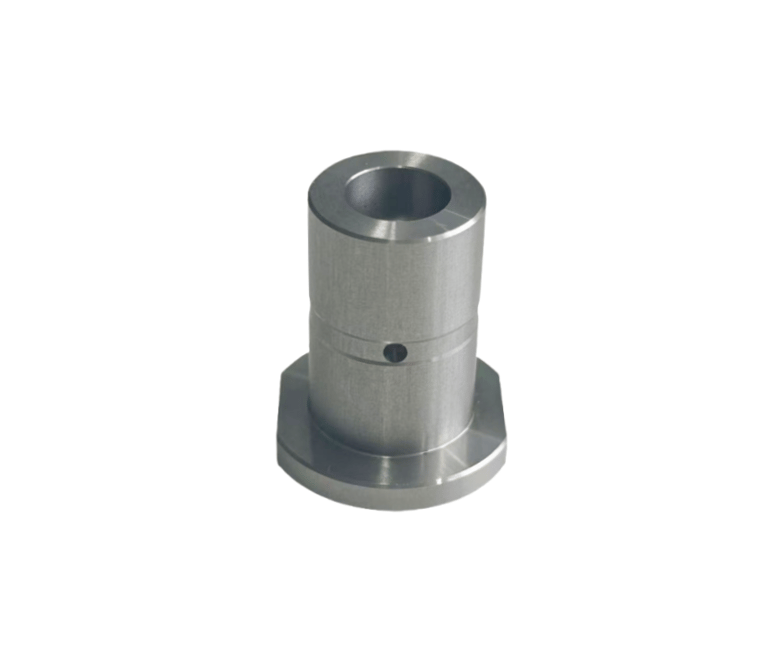

Precision Flange Sleeve

Custom CNC Turning Parts: Stainless Steel Threaded Flange Sleeve Bushing

Introduction

In the world of precision engineering, CNC turning parts play a decisive role in industries ranging from automotive and aerospace to heavy equipment and energy systems. Among these components, the stainless steel threaded flange sleeve bushing has become one of the most reliable solutions for reducing wear, enabling smooth movement, and ensuring mechanical stability in demanding applications.

This article explores the industry trends, product features, machining challenges, quality control practices, and cost management strategies behind these bushings. It also provides a technical overview of real product data and concludes with actionable insights for buyers and engineers.

Industry Trends in CNC Turning and Bushing Applications

Rising Demand for Stainless Steel Bushings

  • Durability requirements in automotive transmissions, robotics, and medical devices have created a strong demand for stainless steel bushings.

  • Sustainability concerns are pushing companies toward long-lasting, corrosion-resistant components to minimize replacement frequency.

  • Customization has become a defining trend—buyers no longer settle for generic parts but request designs tailored to assembly systems.

Integration of Advanced Machining Technologies

  • CNC turning centers are now combined with live tooling, automated probing, and 5-axis machining to produce bushings with tighter tolerances.

  • Use of CAM software with simulation reduces errors and shortens lead times.

Global Supply Chain Considerations

  • North America and Europe continue to rely heavily on Asian suppliers for CNC machined bushings, mainly due to cost advantages and flexible production.

  • However, the market increasingly emphasizes traceable quality certification (ISO/TS 16949, IATF 16949, ISO 9001).

  • Buyers demand not just parts, but also technical support, logistics solutions, and long-term partnership reliability.

👉 For an overview of global CNC machining trends, you may explore SME Manufacturing Insights, which often highlights machining innovations relevant to bushings.

Product Features of Stainless Steel Threaded Flange Sleeve Bushings

Detailed Specifications

These bushings are designed for precision fit and operational reliability.

Functional Characteristics

  • Grease and Oil Grooves: Ensure long-term lubrication, reducing friction and wear.

  • Tight Tolerances: With diameter tolerances of −0.01 mm and bore control at (0, +0.01), these bushings fit precisely into mechanical assemblies.

  • Threaded Design: The central female M12×1.75 thread allows secure integration into assemblies.

  • Side Holes (Ø2.7 mm): Enable alignment pins or lubrication channels depending on application needs.

Applications

  • Automotive powertrain systems (gearbox sleeves, differential housings).

  • Heavy machinery (agricultural equipment, hydraulic pumps).

  • Industrial robotics requiring consistent rotation with minimal backlash.

  • Aerospace assemblies where both weight and precision matter.

Machining Challenges and Solutions

Maintaining Dimensional Accuracy

  • Challenge: Achieving −0.01 mm tolerance on stainless steel is not trivial due to work-hardening and tool deflection.

  • Solution:

    • Use carbide or ceramic inserts for stable cutting.

    • Apply multi-step boring cycles with in-process measurement.

    • Implement tool wear compensation in CNC programming.

Thread Integrity in Stainless Steel

  • Challenge: Cutting precise female M12×1.75 threads without burrs or deformation.

  • Solution:

    • Utilize thread milling instead of tapping for higher precision.

    • Apply coolant with high lubricity to prevent galling.

Drilling Small Side Holes (Ø2.7 mm)

  • Challenge: Small-diameter drilling in stainless can cause tool breakage.

  • Solution:

    • Use peck drilling cycles to reduce chip accumulation.

    • Employ solid carbide drills with TiAlN coating.

Grooving Operations

  • Challenge: External grease grooves and internal oil grooves require smooth finish without chatter.

  • Solution:

    • Opt for narrow-tip grooving inserts with chip-breaker design.

    • Apply low feed rates with constant coolant flow.

Quality Control Challenges and Solutions

Common QC Issues

  • Ovality in inner diameter.

  • Misalignment of through holes.

  • Thread pitch errors.

  • Burrs at oil grooves.

QC Approaches

👉 Internal link suggestion: For more about our CNC Machining Quality Assurance Process, explore our dedicated page.

Cost Control in CNC Turning Bushings

Key Cost Drivers

  • Material cost: Stainless steel price fluctuations (SS304 vs SS316).

  • Tooling wear: Stainless is harder on tools than carbon steel.

  • Cycle time: Complex grooving and threading increase machining hours.

  • Inspection requirements: Higher QC demand increases overhead.

Cost Reduction Strategies

👉 External resource: For stainless steel material insights, refer to ASM International, a trusted authority on material properties and performance.

Internal and External Linking Strategy

  • Internal links:

    • OEM CNC Turning Services → /cnc-turning-services

    • Custom Stainless Steel Components → /stainless-steel-machining

    • Quality Control in CNC Machining → /quality-control-cnc-machining

  • External links:

Choosing the right stainless steel threaded flange sleeve bushing is not just about dimensions—it is about reliability, machining precision, and a supplier who understands the balance between quality and cost.

👉 If your team is seeking custom CNC turning parts with strict tolerances, efficient lead times, and consistent quality, our engineers can support you from prototype to full-scale production.

📩 Contact us today to discuss your project requirements or request a technical drawing review.
Let’s ensure your assemblies run smoother, longer, and with confidence.

Request a Quote Now

The stainless steel threaded flange sleeve bushing represents more than just a machined part—it embodies precision, lubrication reliability, and long-term mechanical stability. By understanding the industry trends, product features, machining difficulties, QC methods, and cost drivers, buyers can make more informed sourcing decisions.

For engineers and purchasing managers, partnering with a reliable CNC machining supplier ensures that each bushing meets its exact role—delivering accuracy, durability, and efficiency across industries
